1. Virtual Private Gateway - AWS - PGW

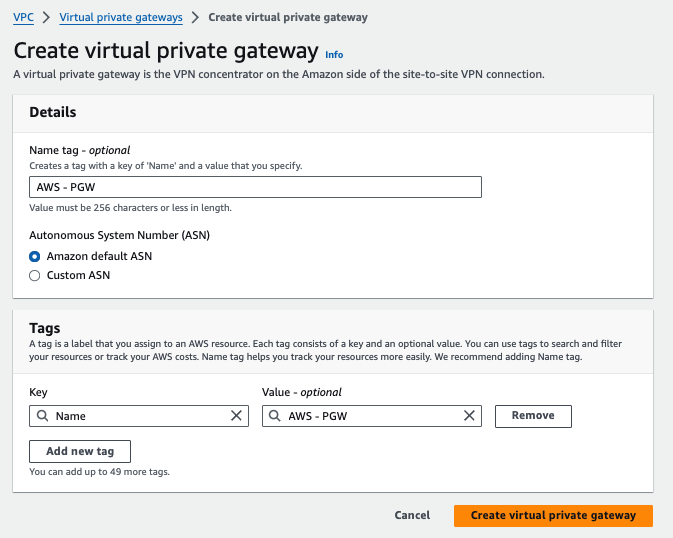

Create a new Virtual Private Gateway named AWS - PGW:

  • Autonomous System Number (ASN): Amazon default ASN ⇒ Autonomous System Number (ASN): Use Amazon’s default ASN (64512). An ASN is used in Border Gateway Protocol (BGP) to uniquely identify an autonomous system on the internet or within private networks. When selecting this, the Virtual Private Gateway (VGW) will use Amazon’s default ASN. When select this, the Virtual Private Gateway (VGW) will use 64512 (Amazon default) as the ASN. If you select Custom ASN and fill 64512 it will be the same as select this option.

image.png image.png

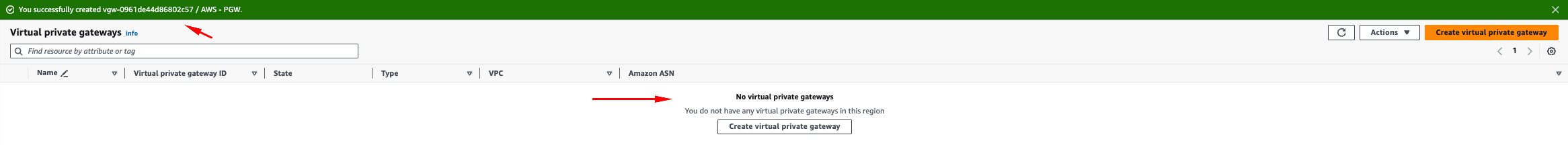

Refresh the page if it says “Success” but shows nothing.

image.png image.png

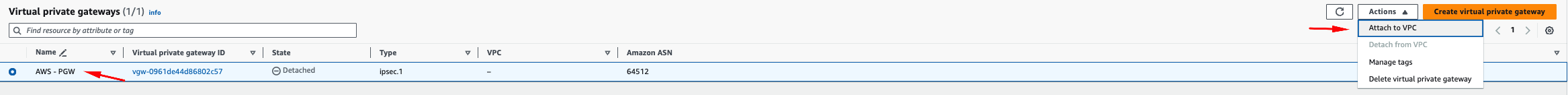

Select and attach it to VPC - AWS

image.png image.png

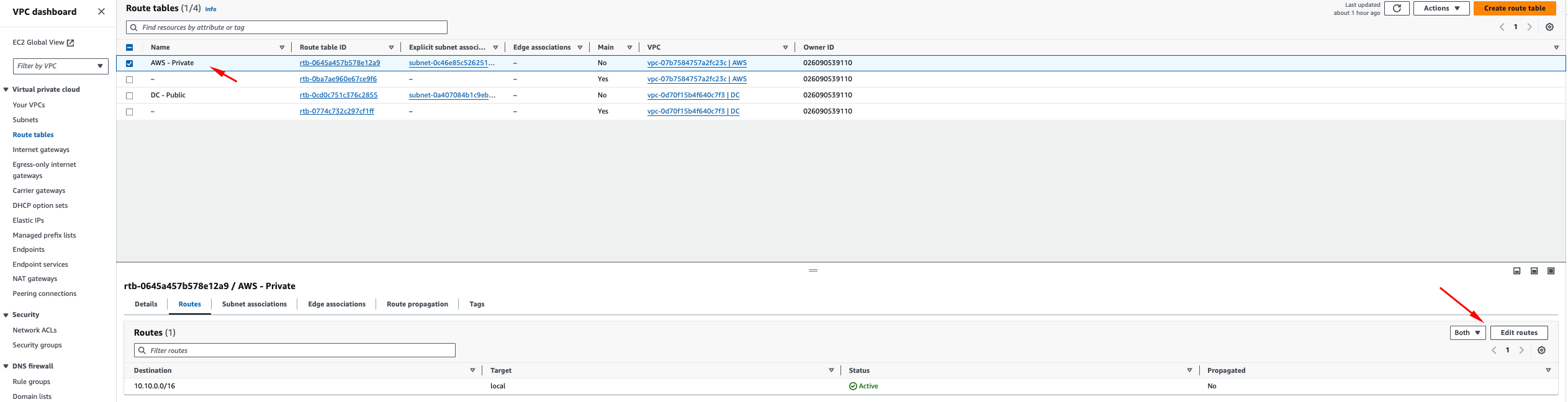

Edit the Route Table - AWS - Private so it can route traffic from this VGW.

image.png image.png

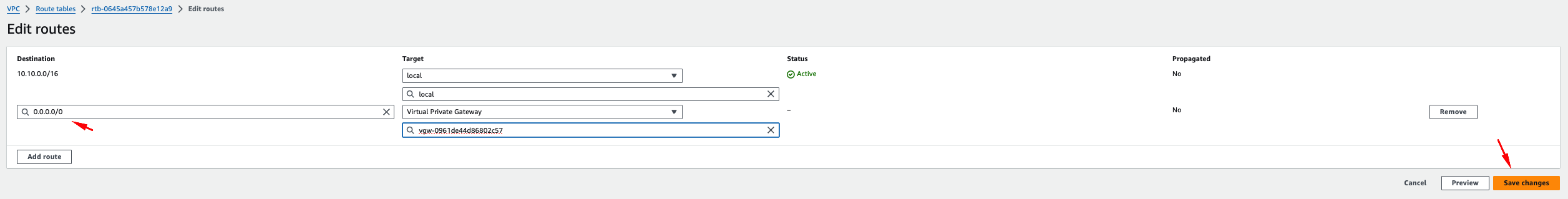

0.0.0.0/0 is a catch-all route, which means it includes all IP addresses. Essentially, it says “for any traffic not matched by a more specific route, use this route to VGW”, so it will redirect traffic to VGW if no other route/instance matched.

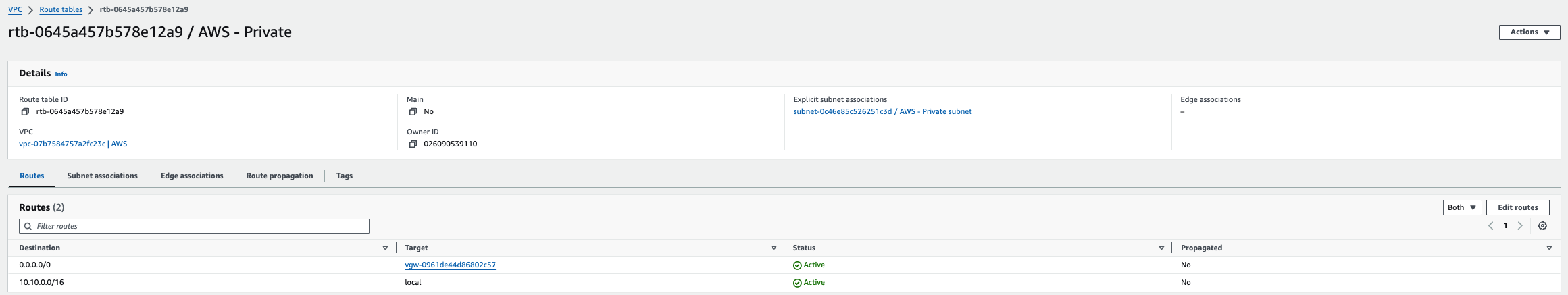

image.png image.png

image.png image.png
