2. Setup Openswan on EC2 - DC - EC2 Openswan Gateway

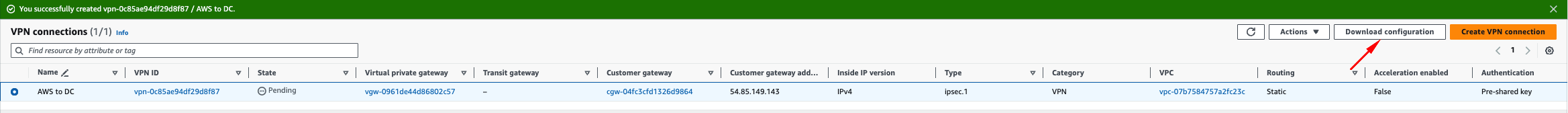

Click “Download Configuration” We will use this configuration to set up our Openswan gateway.

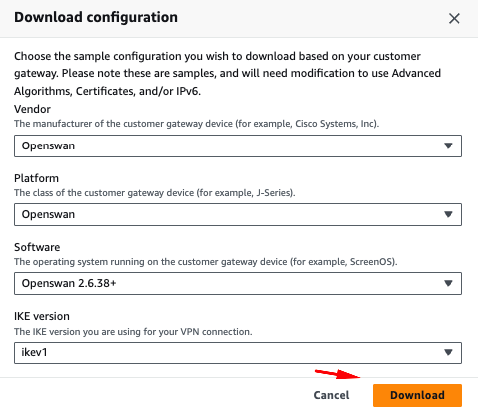

Select the options as shown, and click “Download”

Open that file, and you can see all the instructions. You can read it to learn more details.

For now, let’s focus on certain parts of the IPSEC Tunnel #1 configuration, such as conn and secrets, as shown below:

---
IPSEC Tunnel #1
---
...
conn Tunnel1
	authby=secret
	auto=start
	left=%defaultroute
	leftid=54.85.149.143
	right=3.225.20.219
	type=tunnel
	ikelifetime=8h
	keylife=1h
	phase2alg=aes128-sha1;modp1024
	ike=aes128-sha1;modp1024
	auth=esp
	keyingtries=%forever
	keyexchange=ike
	leftsubnet=<LOCAL NETWORK>
	rightsubnet=<REMOTE NETWORK>
	dpddelay=10
	dpdtimeout=30
	dpdaction=restart_by_peer
...
5) Create a new file at /etc/ipsec.d/aws.secrets if it doesn't already exist, and append this line to the file (be mindful of the spacing!):
54.85.149.143 3.225.20.219: PSK "yioHTXdE29JV2HmcDpx8nXhzQwkdR5FW"
...

We’ll need to use these two configurations/credentials, and we will build the command to add the conn configuration as follows:

Remove auth=esp to avoid conflicts with the Amazon Linux 2 AMI - VPN configuration.
Update leftsubnet=192.168.0.0/16 to match the current VPC - DC CIDR (Local).
Update rightsubnet=10.10.0.0/16 to match the current VPC VPC - AWS CIDR (Remote).
Keep everything else in the configuration the same.

So my add conn command will look like this:

sudo bash -c 'cat <<EOF > /etc/ipsec.d/aws.conf
conn Tunnel1
  authby=secret
  auto=start
  left=%defaultroute
  leftid=54.85.149.143
  right=3.225.20.219
  type=tunnel
  ikelifetime=8h
  keylife=1h
  phase2alg=aes128-sha1;modp1024
  ike=aes128-sha1;modp1024
  keyingtries=%forever
  keyexchange=ike
  leftsubnet=192.168.0.0/16
  rightsubnet=10.10.0.0/16
  dpddelay=10
  dpdtimeout=30
  dpdaction=restart_by_peer
EOF'
cat /etc/ipsec.d/aws.conf

Next step, look at the remaining parts of the downloaded configuration file.

5) Create a new file at /etc/ipsec.d/aws.secrets if it doesn't already exist, and append this line to the file (be mindful of the spacing!):
54.85.149.143 3.225.20.219: PSK "yioHTXdE29JV2HmcDpx8nXhzQwkdR5FW"

We will build our add secret command by inserting the key in the middle of this command.

sudo bash -c 'cat <<EOF > /etc/ipsec.d/aws.secrets
54.85.149.143 3.225.20.219: PSK "yioHTXdE29JV2HmcDpx8nXhzQwkdR5FW"
EOF'
cat /etc/ipsec.d/aws.secrets

Nice! Now SSH into DC - EC2 - Openswan Gateway again. We will follow a series of steps to set up Openswan.

# Change to su user, we will have full permissions to run all commands
sudo su

# Install openswan
yum install openswan -y

# Edit `/etc/sysctl.conf` to avoid redirect attach
sudo bash -c 'cat <<EOF > /etc/sysctl.conf
net.ipv4.ip_forward = 1
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.send_redirects = 0
EOF'
cat /etc/sysctl.conf

# Run the `add conn command` that you just built
# This is my `add conn command` command, remember to run YOUR instead
sudo bash -c 'cat <<EOF > /etc/ipsec.d/aws.conf
conn Tunnel1
  authby=secret
  auto=start
  left=%defaultroute
  leftid=54.85.149.143
  right=3.225.20.219
  type=tunnel
  ikelifetime=8h
  keylife=1h
  phase2alg=aes128-sha1;modp1024
  ike=aes128-sha1;modp1024
  keyingtries=%forever
  keyexchange=ike
  leftsubnet=192.168.0.0/16
  rightsubnet=10.10.0.0/16
  dpddelay=10
  dpdtimeout=30
  dpdaction=restart_by_peer
EOF'
cat /etc/ipsec.d/aws.conf

# Run the `add secret command` that you just built
# This is my `add secret command` command, remember to run YOUR instead
sudo bash -c 'cat <<EOF > /etc/ipsec.d/aws.secrets
54.85.149.143 3.225.20.219: PSK "yioHTXdE29JV2HmcDpx8nXhzQwkdR5FW"
EOF'
cat /etc/ipsec.d/aws.secrets

# Apply new config and restart **Network service & IPsec service**
sudo sysctl -p # Apply new sysctl config
sudo chkconfig ipsec on # Ensures IPsec service is enabled on boot.
sudo service network restart
sudo service ipsec restart

# Read IPsec log
sudo journalctl -u ipsec -f

Check if IPsec has started yet

# Check IPsec and network status
sudo service ipsec status

Mine is good now, you can see it shows Active: active (running)

[root@ip-192-168-1-206 ec2-user]# sudo service ipsec status
Redirecting to /bin/systemctl status ipsec.service
● ipsec.service - Internet Key Exchange (IKE) Protocol Daemon for IPsec
   Loaded: loaded (/usr/lib/systemd/system/ipsec.service; enabled; vendor preset: disabled)
   Active: active (running) since Tue 2024-08-27 18:16:26 UTC; 35s ago
     Docs: man:ipsec(8)
           man:pluto(8)
           man:ipsec.conf(5)
  Process: 1168 ExecStartPre=/usr/sbin/ipsec --checknflog (code=exited, status=0/SUCCESS)
  Process: 1162 ExecStartPre=/usr/sbin/ipsec --checknss (code=exited, status=0/SUCCESS)
  Process: 628 ExecStartPre=/usr/libexec/ipsec/_stackmanager start (code=exited, status=0/SUCCESS)
  Process: 626 ExecStartPre=/usr/libexec/ipsec/addconn --config /etc/ipsec.conf --checkconfig (code=exited, status=0/SUCCESS)
 Main PID: 1186 (pluto)
   Status: "Startup completed."
   CGroup: /system.slice/ipsec.service
           └─1186 /usr/libexec/ipsec/pluto --leak-detective --config /etc/ipsec.conf --nofork

Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: | setup callback for interface eth0:500 fd 15
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: loading secrets from "/etc/ipsec.secrets"
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: loading secrets from "/etc/ipsec.d/aws.secrets"
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #1: initiating Main Mode
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #1: STATE_MAIN_I2: sent MI2, expecting MR2
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #1: STATE_MAIN_I3: sent MI3, expecting MR3
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #1: Peer ID is ID_IPV4_ADDR: '3.225.20.219'
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #1: STATE_MAIN_I4: ISAKMP SA established {auth=PRESHARED_KEY cipher=aes_128 integ=sha group=MODP1024}
Aug 27 18:16:26 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #2: initiating Quick Mode PSK+ENCRYPT+TUNNEL+PFS+UP+IKEV1_ALLOW+IKEV2_ALLOW+SAREF_TRACK+IKE_FRAG_AL...=MODP1024}
Aug 27 18:16:27 ip-192-168-1-206.ec2.internal pluto[1186]: "Tunnel1" #2: STATE_QUICK_I2: sent QI2, IPsec SA established tunnel mode {ESP/NAT=>0xc4f820fd <0x5b2d1f92 xfr...PD=active}
Hint: Some lines were ellipsized, use -l to show in full.
